Human B/W Ultrasound Scanner

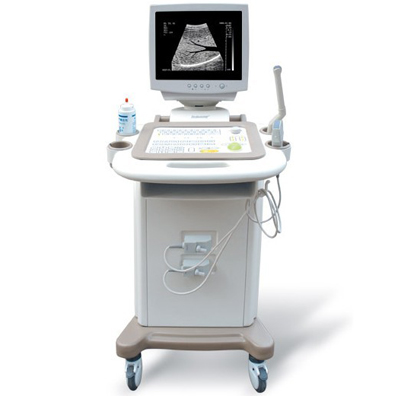

PL-2018CII trolley ultrasound scanner: Brand：PALMARY
Model：PL-2018CII

The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc. with the human being configurations, as well as for veterinary use with the veterinary configurations.

Please call： 400-636-0516 consulting

Introduction
Specifications

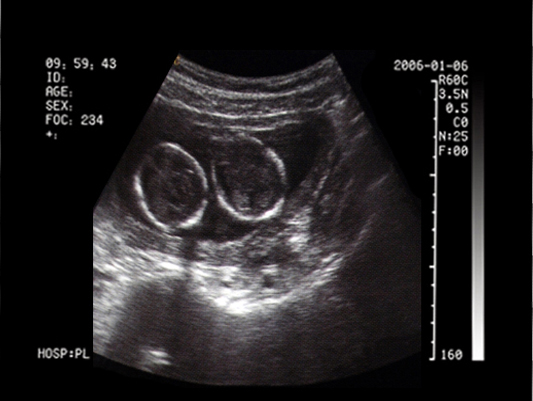

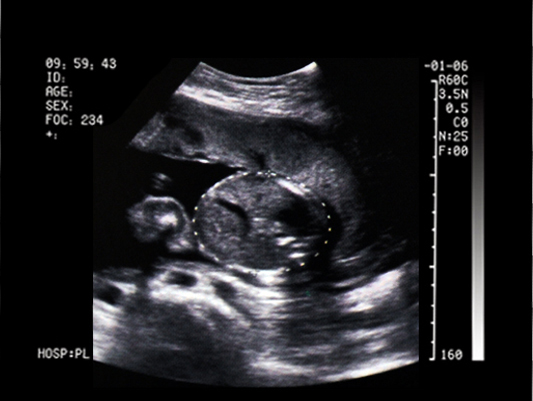

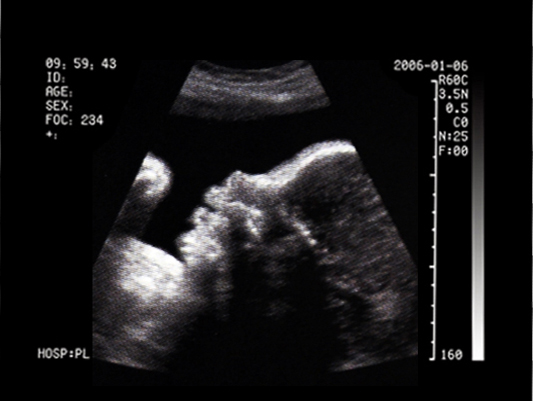

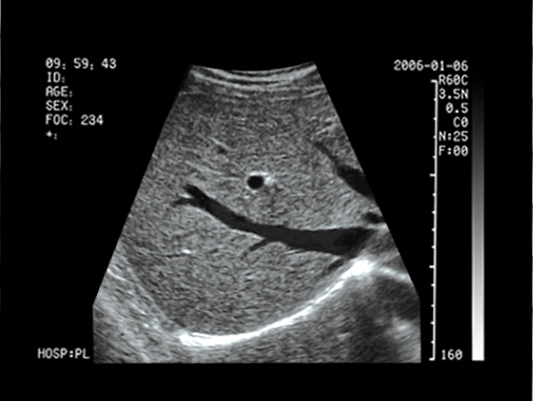

Pproduct image

- Display mode: B, B+B, B+M, M. Gray scale resolution: 256 scales.

- The image can be displayed in real time, frozen, amplified, black- white reversed, up and down conversed and shift depth in real time.

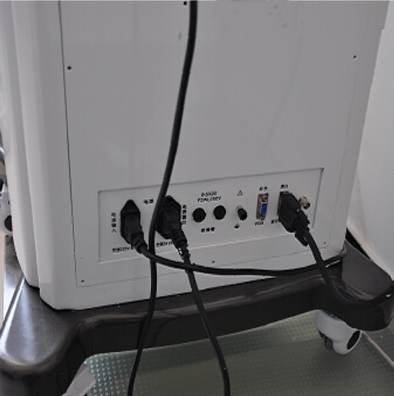

- Video output is standard PAL and VGA; it is easily accessed to the equipment, such as the large screen monitor, videocassette recorder, video image printer, etc.

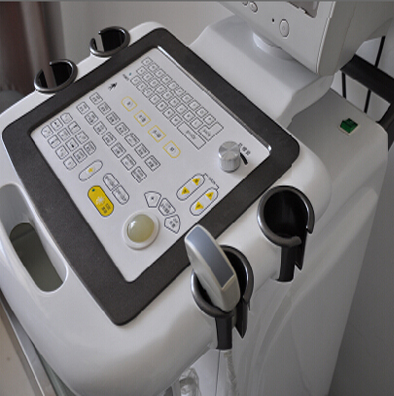

- Soft keyboard and track ball to make operation faster, convenient and flexible.

- The device is trolley structured with plastic cover. Switch power is used without working frequency transformer. FPGA and SMT in the device make the device high integrated, small volume and light weight.

- The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.

- Chinese-English conversation.

Standard probe			3.5MHz Convex Probe
Optional probes			7.5MHz linear probe 6.5MHz Tans-vaginal probe
Acoustic power M Mode			C1-2/R60 3.5MHz	P-(MPa)	1.04
				Ispta(mw/cm2)	2.93
				Iob(mw/cm2)	1.14
Display Depth (mm)			≥220
Resolution (mm)		Lateral	≤3(depth≤80) ≤4(80
		Axial	≤2(depth≤80) ≤3(80
Dead Zone (mm)			≤5
Geometry precision (%)	Horizontal		≤15
	Vertical		≤10
Monitor screen			14 inch
Display mode			B, B+B, B+M, M
Image gray scales			256 scales
Electronical focusing			4 focuses combination randomly
Magnification			X1.0, x1.2, x1.5, x2.0
Cine-loop			186 or 236 frames
Image storage			20 frames
Pseudo-color unit			Inside
Image reverse			Left/right, black/white, up/down
Local Zoom			2 times
Depth shift			B, B+B modes real time shift
Powder supply:			100V-130V/220V-240V, 50/60Hz
