- Display image in real time, frozen, amplified, black- white reversed, up/down conversed and shift depth in real time.
- Video output: PAL and VGA; large screen monitor, videocassette recorder, video image printer.
- Soft keyboard and track ball to make operation faster, convenient and flexible.
- Trolley structured with plastic cover. Switch power is used without working frequency transformer. FPGA and SMT in the device make the device high integrated, small volume and light weight.
- The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.
Image processing:
-Using high-end brand commercial computer configuration, Chinese WINDOWS XP platform;
-19”LCD color display high-resolution image capture, with screen display multiple static photos, local amplification;
-Intuitive pseudo-color coding shows visualization of dynamic image enhancement, convenient and accurate measurements;
-Full processing, part processing, gray processing, amplification processing, more unique lens roaming;
-For the image, can be marked text, arrows, boxes.
Print Storage:
-With high-end color inkjet printer, fast print beautiful graphics integrated report card.
-Save images and diagnostic reports together, can store one million images and reports.
-Built-in diagnostics thesaurus and common reporting template, mouse-point thesaurus, templates, select the content is automatically added to the report, thesaurus, templates can be added or modified.
-Fast and convenient historical cases queries.
-The machine has a convenient case history inquiries.

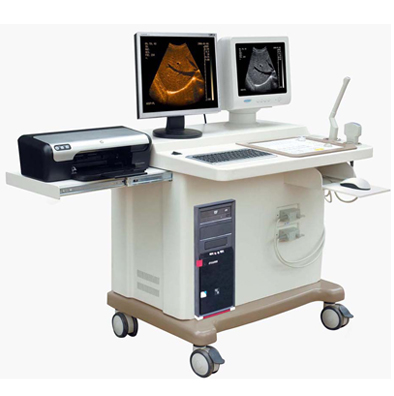

Standard configurations
v ultrasound scanner with 17" CRT monitor
v image workstation with 19" LCD monitor
v 3.5Mhz convex probe
v 6.5Mhz trans-vaginal probe
Optional
v 7.5Mhz linear probe
v HP ink jet printer
1. Ultrasound scanner:
v Standard probe:60R/3.5MHz Multi-freq Convex Probe; 13R/6.5MHz Multi-freq Trans-vaginal;
v Detecting depth:≥ 220mm;
v Display mode: B; B+B; B+M; M;
v Gray Scale: 256;
v Image amplification: ×1.0; ×1.2; ×1.5; ×2.0;
v Measurement: distance; circumference; area; heart rate; gestational week; fetal weight etc;
v Annotation: time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc;
v English-Chinese conversion;
v Cine-loop: 186
v Obstetric table: BPD; CRL; GS; FL; AC; HC; FW; EDD;
v Body marks: ≥10 types with probe position;
v Monitor :14" CRT;
v Power Supply: 100V~130V/220V~240V, 50/60Hz;
v Net Weight: 40Kgs(including probe);
v Dimension (mm): 910Χ760Χ900.
2. Imaging workstation specification:
v Main board :Gigabyte G31M
v CPU:INTEL Celeron 430 1.8MHz
v EMS memory:Kingston800 1G
v Hard disk:Western Digital 160G
v Monitor:19" LCD
v Electromechanical:phillips+ GREATWALL
v Keyboard:Lisheng
v Mouse:Double Swallow Optical mouse
