Tumor: malignant tumor (extrahepatic growing, inverted;), intestinal tumor(colon cancer, rectal cancer), gastric polyp;
Inflammation and ulcer: chronic gastritis, menetrier, gastric ulcer and duodenal ulcer;
Congenital abnormality of gastrointestinal tract: congenital pyloric stenosis; gastrointestinal double malformation;
Acute gastrectasis, gastric excise dysfunction; gastric foreign body; gastroptosis etc; general examination of liver, gallbladder, spleen, pancreas, urinary system and etc
Please call： 400-636-0516 consulting

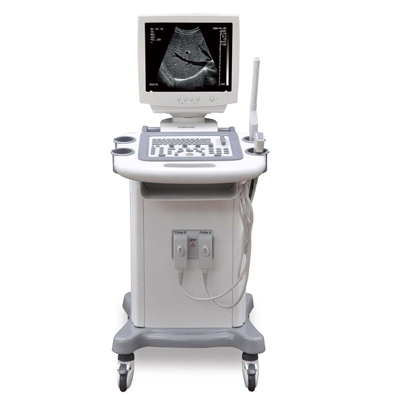

Main unit
-3.5Mhz convex probe
-5.0Mhz micro-convex probe
-All accessories
Optional:
-7.5Mhz linear probe
-6.5Mhz trans-vaginal probe
-thermal video printer
Features:
The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture, multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement and frame correlation.
Those embedded components allow a clear, stable and high resolution image.
Power Supply: 100V~130V/220V~240V, 50/60Hz
| Probe | Standard | Optional | |||
| C3-1/60R/3.5MHz convex probe | L3-1/7.5MHz linear probe | EC1-1/13R/6.5MHz trans-vaginal probe | |||
| Probe frequency | 2.5Mhz,3.5Mhz, 5.0Mhz | 6.5Mhz,7.5Mhz,8.5Mhz | 5.5Mhz,6.5Mhz,7.5Mhz | ||
| Display depth (mm) | 240 (max),16 levels adjustable | ||||
| Max detect depth (mm) | ≥160 | ≥80 | ≥60 | ||
| Resolution (mm) | Lateral |
≤2 (depth≤80)
≤3 (80
|
≤1
(depth≤60)
|
≤1
(depth≤40)
|
|
| Axial |
≤2 (depth≤80)
≤3 (80
|
≤1
(depth≤60)
|
≤1
(depth≤40)
|
||
| Blind zone(mm) | ≤5 | ≤3 | ≤7 | ||
| Geometric position precision | Horizontal | ≤15 | ≤5 | ≤10 | |
| Vertical | ≤10 | ≤5 | ≤5 | ||
| Monitor size | 14 inch | ||||
| Display mode | B,B+B,B+M,M,4B | ||||
| Image gray scale | 256 level | ||||
| Cine loop | 809 frame (Max) | ||||
| Image storage | 32 frames | ||||
| Scan angle | Adjustable | ||||
| Scan depth | 40mm-240mm | ||||
| Acoustic power | 2 steps | ||||
| Dynamic range | 100dB-130dB | ||||
| Image flip | Up/down, left/right, black/white | ||||
| Focus position | Adjustable | ||||
| Focal space | 5 level | ||||
| Measurement | Distance, circumference, area, volume, heart rate. GA,FW,EDD | ||||
| Notation | Date, time, name. sex, age, doctor, hospital name. Full screen words edit. | ||||
| Output report | 2 type | ||||
| Posture mark | ≥40 | ||||
| Video output | PAL-D, VGA | ||||
