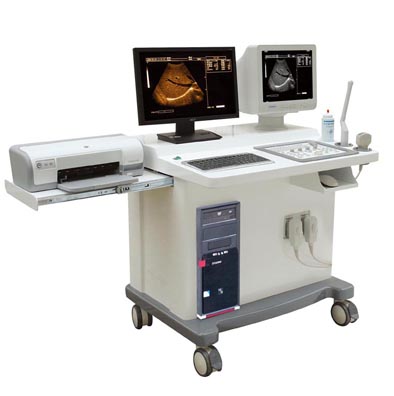

1) One ultrasound scanner with 17" CRT monitor
2) One image workstation
3) One HP printer
4) Two probes
1. Main Unit
1) Standard probe:
60R/3.5MHz Multi-freq Convex Probe (2.5-3.5-5.0MHz )
2) Optional probes:
7.5 MHz Multi-freq Linear Probe (6.5-7.5-8.5MHz )
13R/6.5MHz Multi-freq Trans-vaginal; (5.5-6.5-7.5MHz )
3) Specifications:
.ultrasound scanner with 15” LCD monitor.
.Detecting depth:≥ 220mm;
.Display mode: B; B+B; B+M; M; 4B
.Gray Scale: 256;
.Image amplification: ×1.0; ×1.2; ×1.5; ×2.0;
.Local zoom: 2 times;
.Electronic focusing: 4 focuses combination randomly;
.Measurement: distance; circumference; area; heart rate; gestational week; fetal weight etc;
.Annotation: time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc;
.English-Chinese conversion;
.Cine-loop:341
.Image load/storage; 32
.Obstetric table: BPD; CRL; GS; FL; AC; HC; FW; EDD;
.Body marks: 40 types ;
Power Supply: 100V~130V/220V~240V, 50/60Hz
Dimensions(cm): 91Χ76Χ92 (main unit carton ); 40*35*37 (CRT monitor carton)
2. Imaging workstation specification:
Main board :Gigabyte G31M
CPU:INTEL Celeron 430 1.8MHz
EMS memory:Kingston800 1G
Hard disk:Western Digital 160G
Monitor:19 LCD
Electromechanical:phillips+ GREATWALL
Keyboard:Lisheng
Mouse:Duble Swallow Optical mouse
