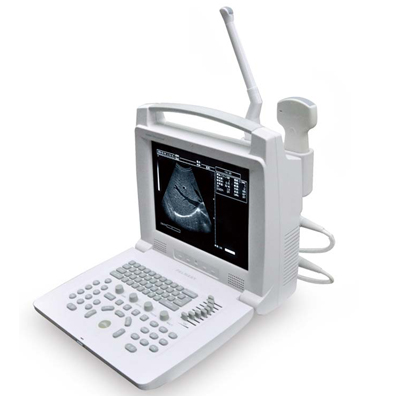

This equipment is convex linear ultrasound scanning diagnostic system with high resolution. It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),real time dynamic aperture (RDA),real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),digital frequency scan (DFS),8 segments digital TGC, guide cannula puncture, frame correlation technologies to endue its image with clarity, stability and high resolution.
Features:
For real-time picture uploading to PC

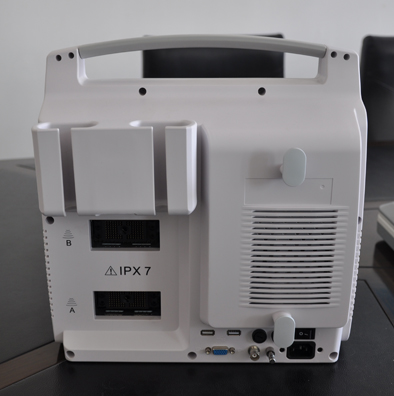

2 USB ports;

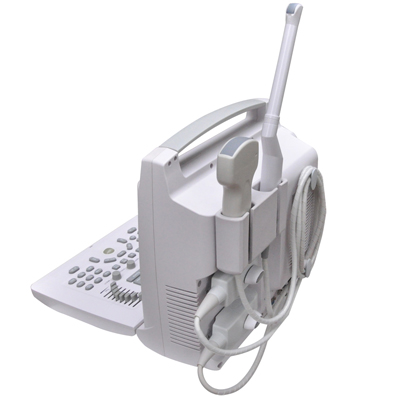

2- probe connectors;
Monitor: imported 12 " LCD;
Probe elements : 96;
Power Supply: AV220V±22V, 50MHz±1MHz;
Standard configuration:
-Main unit
-3.5MHz Convex Probe
-All accessories
Optional:
6.5MHz Trans-vaginal
7.5 MHz Linear Probe
Video printer
Display depth (mm):240 (max),16 levels adjustable
Max detect depth (mm):≥160
Blind zone(mm):≤3
Monitor size:12 inch

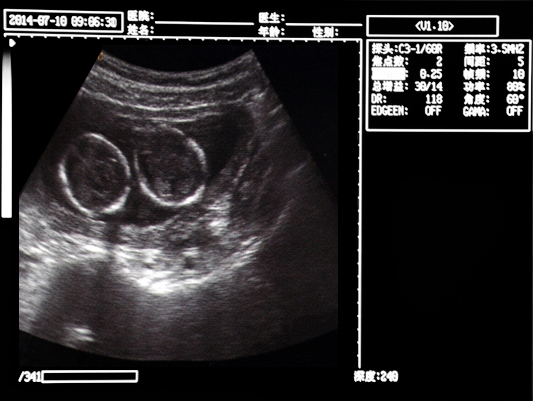

Display mode:B,B+B,B+M,M,4B
Image gray scale:256 level
Cine loop:809 frame (Max)
Image storage:32 frames
Scan angle:Adjustable
Scan depth:40mm-240mm
Acoustic power:2 steps
Dynamic range:100dB-130dB
Image flip:Up/down, left/right, black/white
Focus position:Adjustable
Focal space:5 level

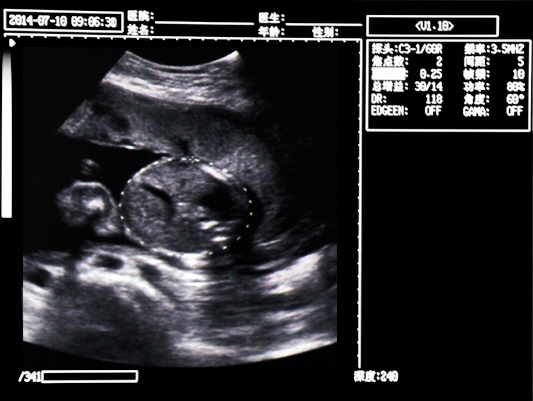

Measurement:Distance, circumference, area, volume, heart rate. GA,FW,EDD
Notation:Date, time, name. sex, age, doctor, hospital name. Full screen words edit.
Output report:2 type
Posture mark:≥40
Video output:PAL-D, VGA
