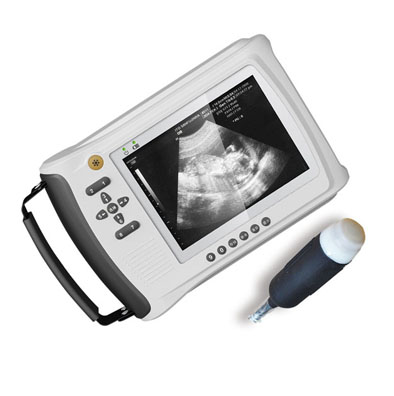

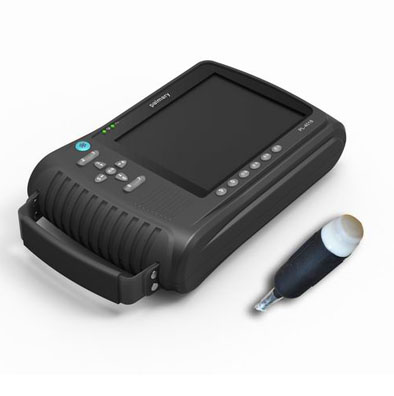

This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.
Standard Configuration:
-Main unit.
-3.5Mhz sector probe; or S3/3.5Mhz waterproof sector probe.
-Wrap bag.
-Protective box.
-Manual/ technical instructions.
-Power adapter(containing powder cord)
Optional:
-Video printer
-Li-ion battery
-Car charger
-Charging adaptation wire
Displayed Depth(mm):192
Maximal detect depth(mm):≥140
Blind zone(mm):≤8
Monitor size:5.0 TFT-LCD
Display mode:B, B+B, B+M, M, 4B
Image gray scale:256
Scan depth:120mm-190mm
Image process:Histogram, color encode, gama, image smooth
Battery capacity:2200mAh
Measurement:Distance, circumference, area, volume, heart rate, gestation age
Notation:Date, time, name, sex, age, full screen words edit and etc.
Output report:Measurement
Output:USB2.0, VIDEO( PALD, NTSC)
Battery continuous work:≥3 hours
Net weight:800G
