Display Mode: B, B/B, 4B, B+M, M.
Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.
Scanning depth: ≥ 170mm.
Blind area: ≤4mm.
Pre-treatment: variable aperture, dynamic apodization, dynamic digital filtering.
After treatment: 8 types γ correction, line correlation, frame correlation, point-line correlation, linear interpolation, digital temporal filtering, digital enhancement Crochet, pseudo-color processing.
Dynamic range: 0~120dB adjustable.

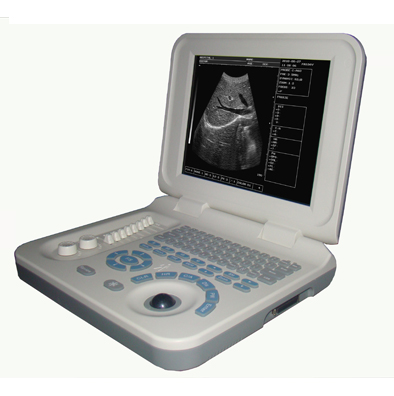

Monitor: 10.8 inch LCD high-resolution.
Grey scale: 256.
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on.
Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock display.
Body marks: 8.
Puncture guide: displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image reverse: left/right, black/white, up/down.
Cine loop: 256.
Permanent storage: 128.
Image display: continuous playback, pieces of view Video
Output interface: SVGA, PAL, video recorder and Image workstation and etc, USB output.
Power: AC 220V±22V 50Hz
Input power: ≤ 300VA
Continuous work hours: ≥ 8h.
