-Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processing, the image is crisp and clear, high resolution.
-Measured for distance, perimeter, area, obstetric and etc.
-Individually adjustable near field, far field gain (5 stage adjustable).
-Single-B display, continuous real-time status in the field of vision to move the function.
-With display playback, gamma correction, histogram and other image processing functions.

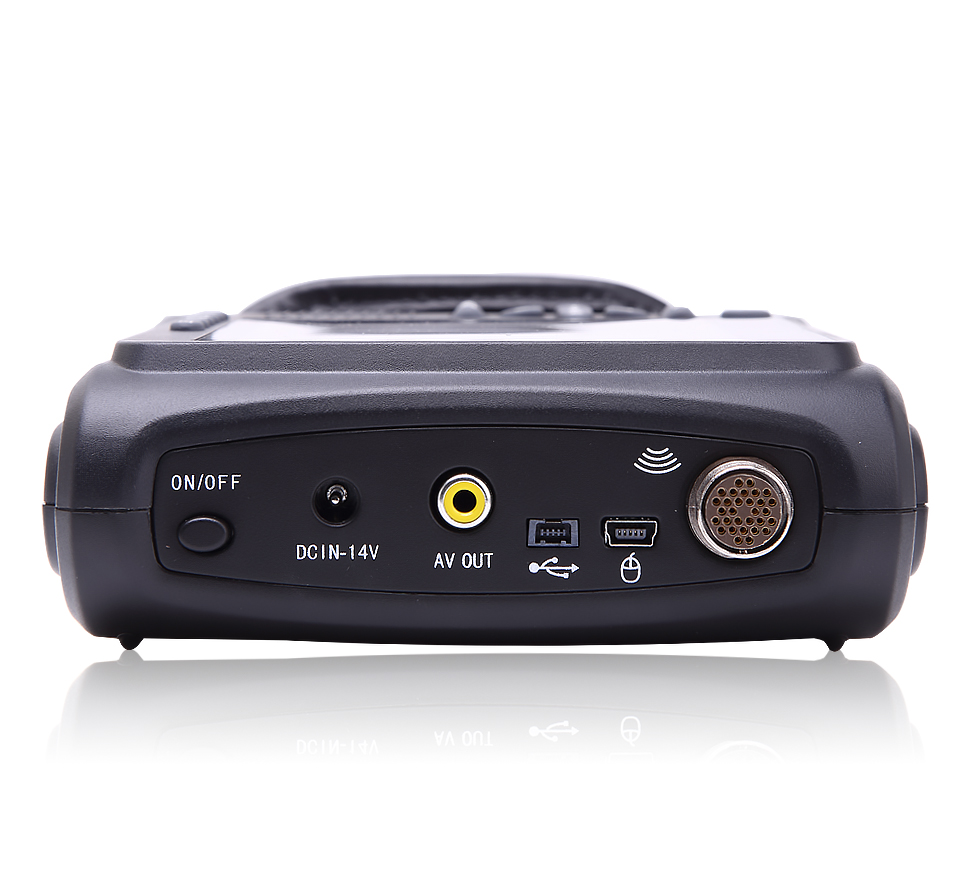

-With built-in memory, and has an external USB interface, the built-in memory data transfer to PC.
-Light weight and convenient.
Standard configuration:

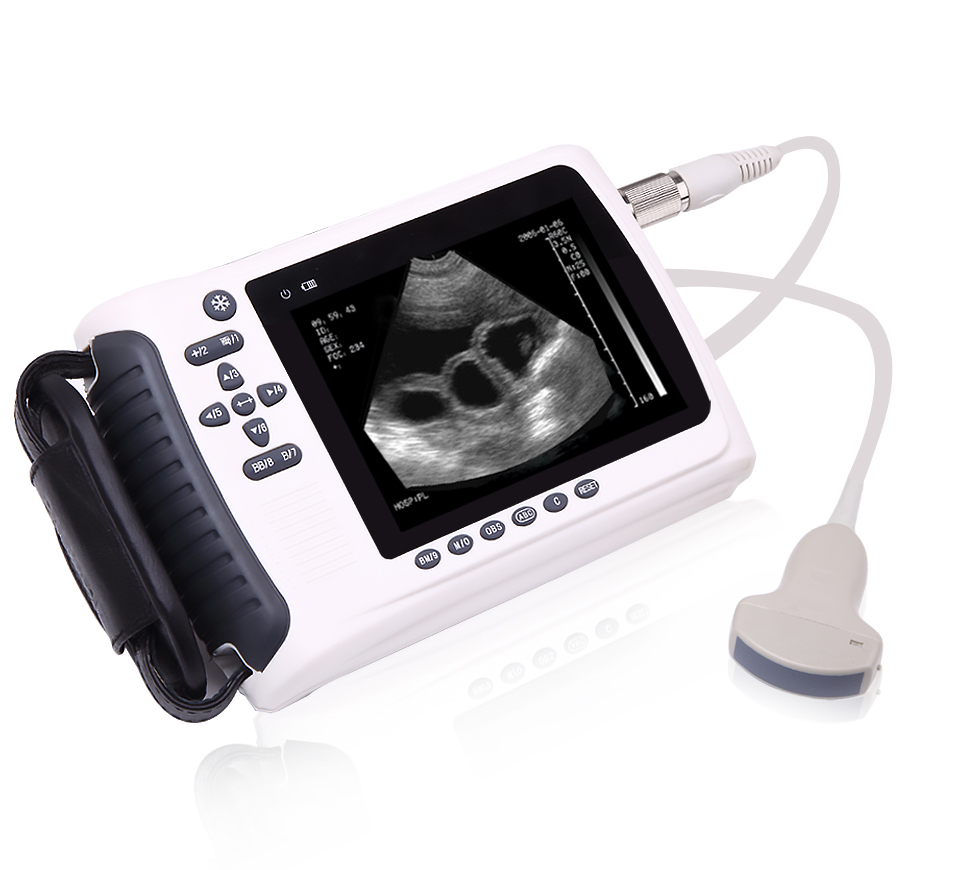

-Main Unit
-PS157 AC adapter
-CB2280 battery
-6.5MHz rectal probe
-powder wire
-250ml couplant
-Manual/ technical instructions

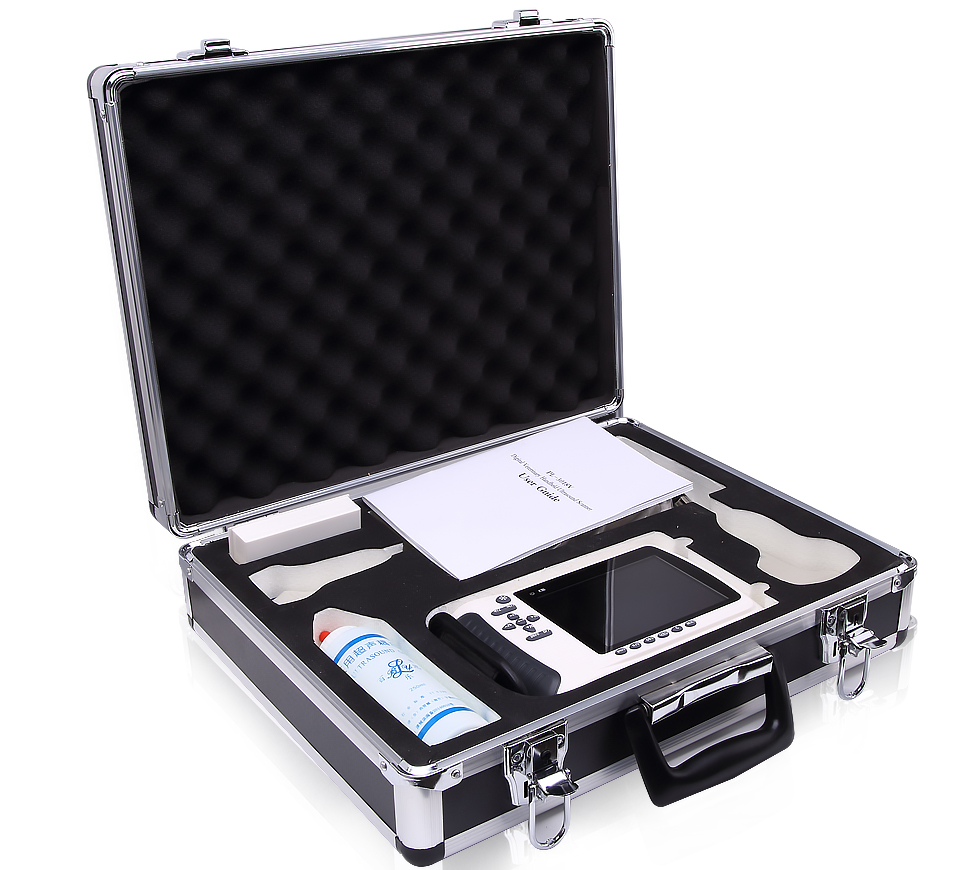

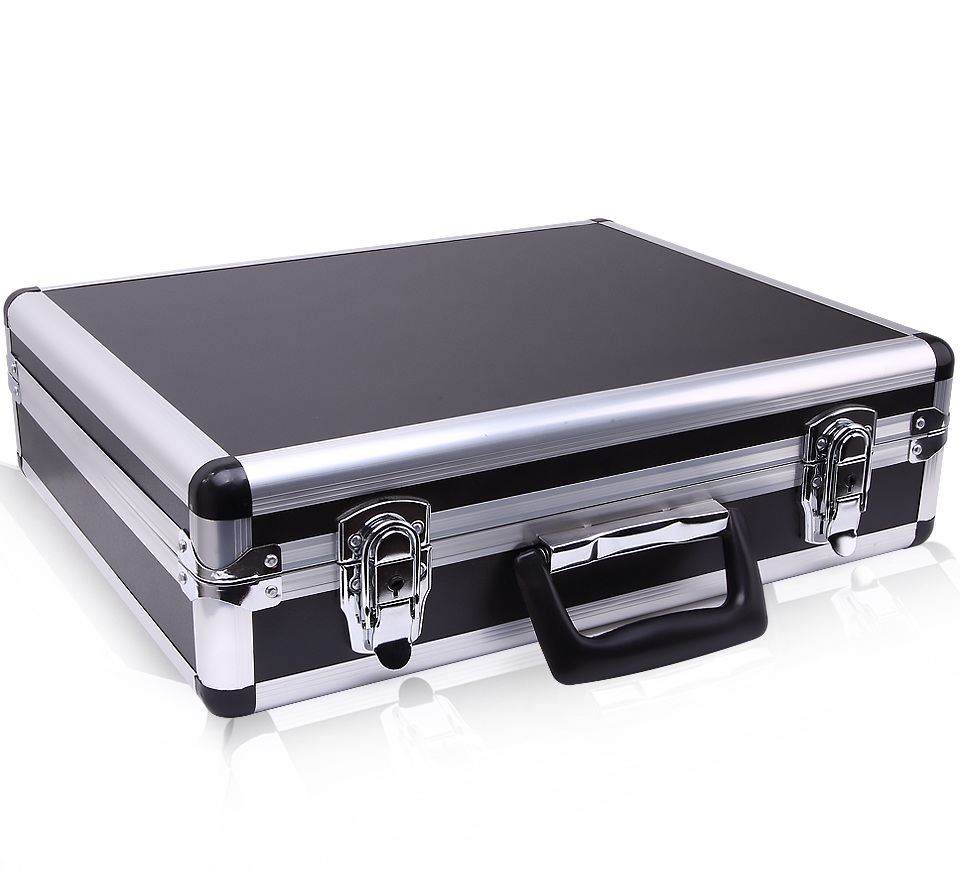

-bag with strap
Options:
-7.5MHz linear probe
-5.0MHz micro-convex probe
-3.5MHz convex probe
-Video printer
-Video wire
Detect Depth(mm):≥50
Blind zone(mm):≤3
Monitor size:7”-TFT
Display mode:B, B+B, B+M, M, 4B
Image gray scale:256
Scan range:convex array
Scan lines:512 lines/ frame
Frame rate:30 frame/second
Digital scan converter:512x512x8bits
Body marks:15
Multi-frequency:2MHz-10MHz
2MHz-10MHz:≥2GB
Video output:PAL
Size:216mm(L) x 147mm(W) x 27mm(H)
Net weight:900G
Battery:3000Mah/7.4V
Battery continuous work:≥3hours
