Veterinary B/W Ultrasound Scan

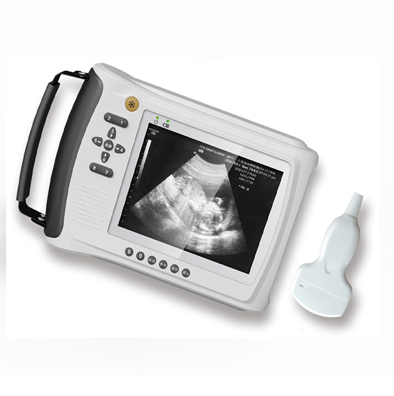

PL-3018V Veterinary Full Digital Handheld Ultrasound Sanner
Brand:PALMARY
Model:PL-3018V

Please call: 400-636-0516 consulting

  • Introduction
  • Specifications
  • Pproduct image

This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.



Standard Configuration:

-Main unit (containing a piece of Li-ion battery)
-3.5MHz Convex probe
-Operation video
-Wrap bag
-User manual
-Main charger (AC-adapter)
-Outside protective box ( as packing details show)



Optional:

-5.0MHz micro-convex probe
-6.5MHz rectal probe
-7.5MHz linear probe
-Video printer
-Li-ion battery
-Car charger
-Charging adaptation wire(containing power cord)

Detect Depth(mm):≥80

Blind zone(mm):≤3

Monitor size:5 inch

Display mode:B, B+B, B+M, M, 4B

Image gray scale:256

Image storage:128

Cine loop:≥400 frame

Scan depth:120mm-220mm

Image flip:Up/down, left/right

Focus position:Adjustable

Posture mark:15

Image process:Histogram, color encode, gama, image smooth

Probe frequency:Adjustable ( 3 point each probe )

Frame correction:Adjustable

Measurement:Distance, circumference, heart rate, EDD, area, volume, GA,

Notation:Date, time, name, sex, age, full screen words edit and etc.

Output report:Measurement

Output:USB2.0, VIDEO( PALD, NTSC)

Battery continuous work:≥3 hours

Net weight:700G
