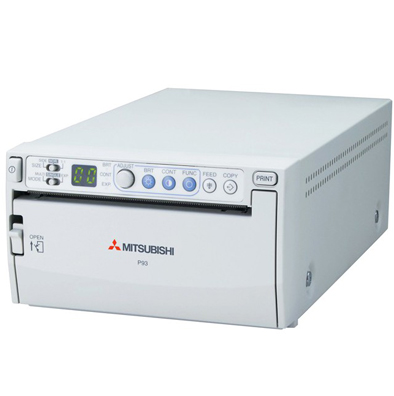

It is black and white ultrasound scanner video image printer.
Applications: mainly used for ultrasound scanner image output.
Please call： 400-636-0516 consulting
High-speed printing;
High stability;
High-density print head and thermal paper matched to reproduce detailed images;
High precision and appropriate size of print options;
Front-button easy to operation;
Mitsubishi unique large area, easy to read LED digital display;
A variety of image size can be easily set by user;
Widely used in medical diagnosis.
Printing Method: direct thermal printing;
Thermal Head: thin film thermal head(1280dots);
Gradations: true 256 gray balance;
Resolution: 325 DPI;
Printed Picture Size: 4”(W) x 12 5/8”(H);
Effective Pixels: EIA 1280 dot x 508 lines; CCIR:1280 dot x 608 lines
Memory: 10 frames
Input/Output: Video In: BNC, CCIR or EIA composite video signal, 1.0
Vp-p, 75 ohms/ high impedance selectable
Video Out: BNC, Loop-through or E to E selectable
Print Speed: Approximately 3.3seconds (High Speed Mode)
Remote Terminal: Stereo Mini-jack
Power Requirements:100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide)
Dimensions (WHD): 154×89.5×256mm(W×H×D)
Weight: 2.8kg
Safety Standards: UL60950-1 Listed CSA C22.2 No. 60950-1 UL60601-1 Listed CSA No. 60601-1
Supplied Accessories: AC Power Cord
Operation Manual (CD ROM)
Thermal Head Cleaning Sheet
BNC Video Connecting Cable
K65HM High Gloss Paper (1 Roll)
Media (not included): K65HM High Gloss Paper
K91HG High Density Paper
K61B: Standard Paper
